Precast Concrete Joint Guide: Selection, Design & Sealant Solutions for Long-Term Performance

Posted by

2026-07-21 On 2026-07-21

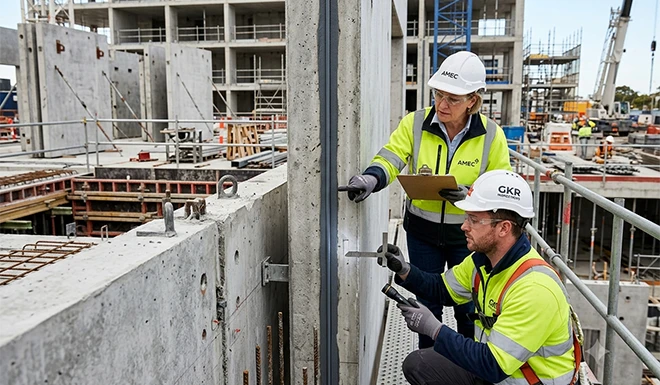

Precast concrete joint sealant installation guide for expansion joints

Introduction: Why Precast Concrete Joints Fail Before the Structure Does

Precast concrete systems have become a preferred construction method for commercial buildings, infrastructure projects, bridges, tunnels, and modular construction because they provide faster installation, consistent quality, and reduced on-site labor.

However, the long-term performance of precast structures depends heavily on one often underestimated component: the joint sealing system.

Unlike monolithic concrete structures, precast elements are assembled from multiple panels or components. These connections naturally experience:

Thermal expansion and contraction
Structural movement
Seismic displacement
Wind pressure changes
Moisture penetration risks
Freeze-thaw cycles

A poorly selected precast concrete joint sealant can lead to:

Water leakage
Concrete edge damage
Corrosion of embedded steel
Reduced building energy efficiency
Expensive maintenance and repair

Therefore, selecting the correct joint sealant is not simply a material decision — it is a structural durability decision.

1. Understanding Precast Concrete Joints

Precast concrete joints are designed to control movement while maintaining weather resistance and structural integrity.

The main joint categories include:

Joint Type	Main Function	Typical Applications
Expansion Joint	Absorbs thermal and structural movement	Bridges, parking structures, large buildings
Control Joint	Controls cracking location	Concrete panels, walls
Construction Joint	Connects separate concrete pours	Large precast assemblies
Panel Joint	Seals gaps between precast elements	Facades, modular buildings
Seismic Joint	Allows earthquake displacement	High seismic zones

The sealing material must match the expected movement level of the joint.

2. Why Traditional Sealants Fail in Precast Applications

Many construction failures occur because the sealant does not match the mechanical behavior of concrete structures.

Common Failure Causes

1. Excessive Stiffness

High modulus sealants resist movement instead of absorbing it.

Result:

Adhesion failure
Cracking along joint edges
Water infiltration

2. Insufficient Movement Capability

Concrete expands and contracts continuously.

A sealant with low movement capacity cannot follow joint deformation.

3. UV and Weather Aging

Exterior precast structures face:

Solar radiation
Rain
Temperature cycling
Atmospheric pollution

Poor weather resistance causes hardening and cracking.

4. Incorrect Joint Design

Even a high-performance sealant can fail if:

Joint width is insufficient
Backer rod installation is incorrect
Bonding surface preparation is poor

3. ASTM C920: The Key Standard for Precast Concrete Joint Sealants

For international construction projects, ASTM C920 Standard Specification for Elastomeric Joint Sealants is one of the most recognized standards.

It evaluates sealants according to:

Adhesion
Cohesion
Elastic recovery
Movement capability
Weather resistance

ASTM C920 Movement Classification

ASTM C920 Class	Movement Capability	Typical Application
Class 25	±25% movement	Standard building joints
Class 35	±35% movement	High-performance facade systems
Class 50	±50% movement	Bridges, seismic structures, large infrastructure

For precast concrete applications, higher movement capability generally provides greater safety margins.

4. Low Modulus Sealant: The Preferred Solution for Precast Joints

A key technical concept in precast joint sealing is:

Low Modulus vs High Modulus Sealant

Performance Factor	Low Modulus Sealant	High Modulus Sealant
Movement absorption	Excellent	Limited
Stress on concrete edges	Low	High
Crack resistance	High	Medium
Suitable for precast panels	✓	△
Seismic performance	Better	Limited

Low modulus sealants reduce stress concentration because they deform more easily when concrete moves.

For large precast structures, this flexibility significantly improves service life.

5. Recommended Sealant Performance Parameters for Precast Concrete

A professional precast joint sealing system should consider the following technical requirements:

Parameter	Recommended Requirement
Movement Capability	±25% to ±50%
Modulus	Low modulus preferred
Elongation	≥600% for high movement joints
UV Resistance	Long-term outdoor durability
Temperature Resistance	-40°C to 90°C or higher
Adhesion	Strong bonding to concrete
VOC	Low VOC / solvent-free preferred

6. INGADA Solutions for Precast Concrete Joint Applications

INGADA provides MS Polymer and silicone-based sealing technologies designed for demanding construction environments.

Recommended Products

Product	Technology	Key Performance	Recommended Applications
MS-625	MS Polymer Sealant	ASTM C920 Class 25, 0.4 MPa low modulus	Precast buildings, prefab structures
MS-635	Ultra Low Modulus MS Sealant	Class 35, ≥600% elongation, 5,000 fatigue cycles	Curtain walls, tunnels, infrastructure
MS-650	High Movement Joint Sealant	Class 50, ≥780% elongation	Seismic structures, bridges, super-tall buildings
SR-50L	Ultra Low Modulus Silicone	±50% movement, -50°C to 150°C	High-rise curtain walls

INGADA’s MS weatherproof sealant series includes MS-625, MS-635 and MS-650, covering movement classes from ±25% to ±50% for high-movement construction joints.

7. Precast Concrete Joint Selection Guide

Project Condition	Recommended Solution
Standard precast facade	ASTM C920 Class 25 sealant
Large precast panels	Low modulus Class 35 sealant
Bridge expansion joints	Class 50 high movement sealant
Earthquake regions	Seismic-tested flexible sealant
Extreme cold climate	Low-temperature flexible MS sealant
Coastal environment	UV and weather-resistant sealant

8. Installation Considerations for Long-Term Joint Performance

Even premium sealants require correct installation.

Joint Design Rules

Joint Width

The joint width should allow sufficient movement absorption.

Three-Sided Adhesion Prevention

Use a backer rod to avoid:

Excessive stress
Deep curing problems
Internal tearing

Surface Preparation

Concrete surfaces should be:

Clean
Dry
Free from dust and oil contamination

9. FAQ: Precast Concrete Joint Sealant Selection

Q1: What is the best sealant for precast concrete joints?

For most precast structures, low modulus elastic sealants with ASTM C920 certification provide the best balance between movement absorption and durability.

Q2: Why is low modulus important for precast panels?

Because precast panels experience continuous thermal and structural movement. Low modulus sealants absorb deformation without transferring excessive stress to concrete edges.

Q3: Is silicone or MS Polymer better for precast joints?

Both technologies have advantages:

Technology	Advantage
Silicone	Excellent UV and temperature resistance
MS Polymer	Paintable, primerless adhesion, low VOC, zero migration

The selection depends on project requirements.

Q4: How long can precast joint sealants last?

Service life depends on:

Sealant quality
Joint design
Climate exposure
Installation quality

High-performance sealants designed according to ASTM C920 can provide decades of durability when properly installed.

Technical Standards Reference

Standard	Purpose	Application
ASTM C920	Elastomeric joint sealant performance	Expansion joints, facade joints
ISO 11600	Building construction joint sealants classification	International construction projects
ASTM C1184	Structural silicone sealant requirements	Structural glazing applications
ISO 9001	Quality management system	Manufacturing consistency

INGADA operates under an ISO 9001 certified quality management system and selected products comply with international requirements including REACH, RoHS, French VOC A+ and relevant ASTM standards.

Conclusion: Choosing the Right Precast Concrete Joint Solution

Precast concrete structures are designed for decades of service, but their durability depends on flexible and reliable joint sealing systems.

The correct precast concrete joint sealant should provide:

High movement capability
Low modulus flexibility
Long-term weather resistance
Strong concrete adhesion
Compliance with international standards

For engineers, contractors, and distributors, selecting the right sealant early in the project design phase can significantly reduce maintenance costs and improve building performance.
