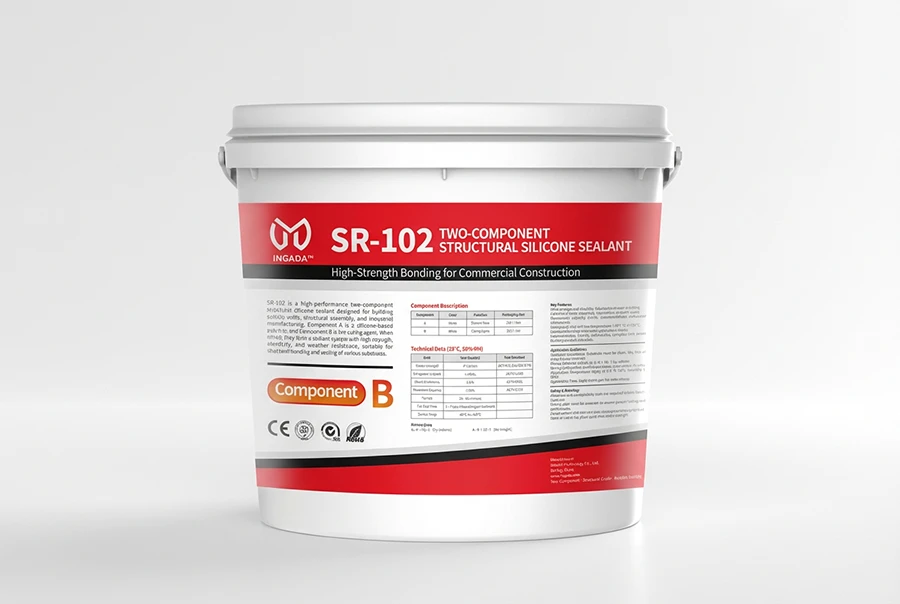

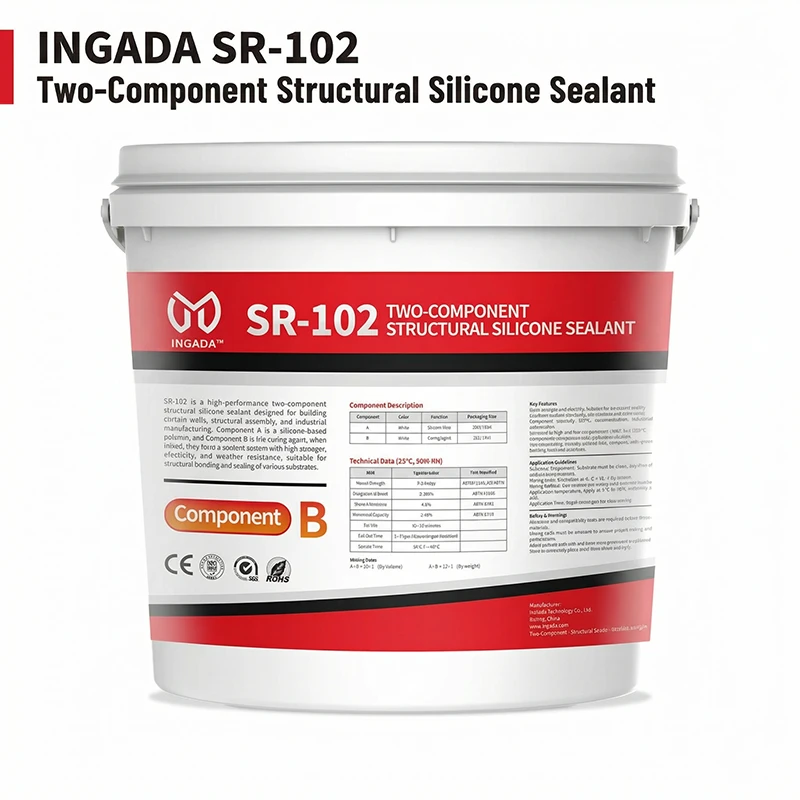

INGADA™ SR-102 Two-Part Structural Silicone Sealant – High-Modulus
Pot-Life Controlled System for Building Curtain Walls
-
The “Deep-Cure” Advantage: Solves the problem of slow curing in thick structural joints, allowing for faster transport of glazed units to the job site.
-
Precision Industrial Bonds: The mechanical mixing process ensures 100% uniform color and property consistency across entire curtain wall projects.
Discover more from INGADA The Ultimate Bonding Expert
Subscribe to get the latest posts sent to your email.
-
High-Volume Productivity: A two-component system (A+B) designed for mechanical mixing, providing faster deep-cure times for industrial assembly lines.
-

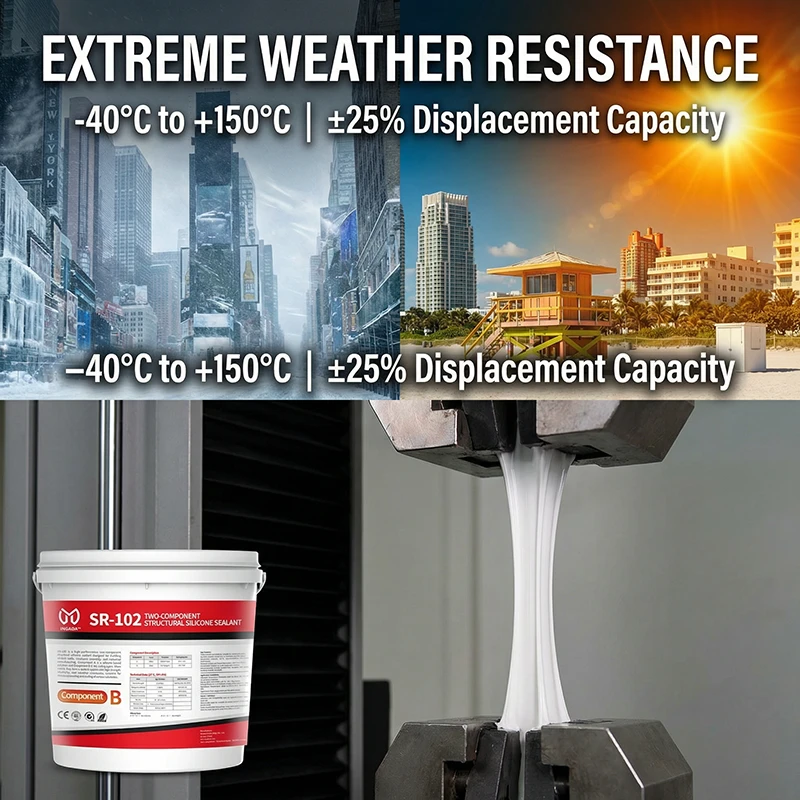

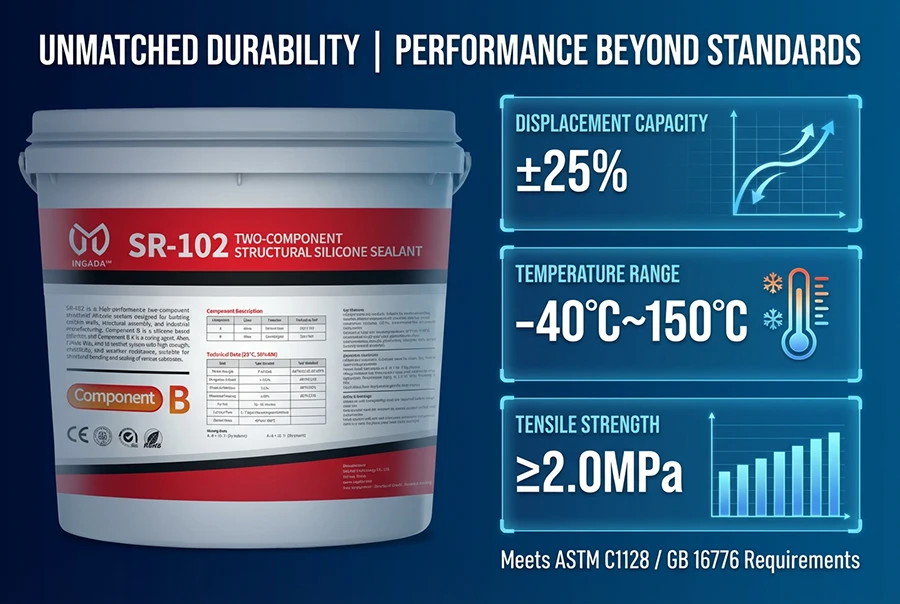

Superior Movement Rating: Features a ±25% movement capability, providing the highest level of flexibility for dynamic architectural structures.
-
Controllable Cure Window: Offers a 30-60 minute pot life, giving installers a wide window for precision placement and large-scale assembly.
-

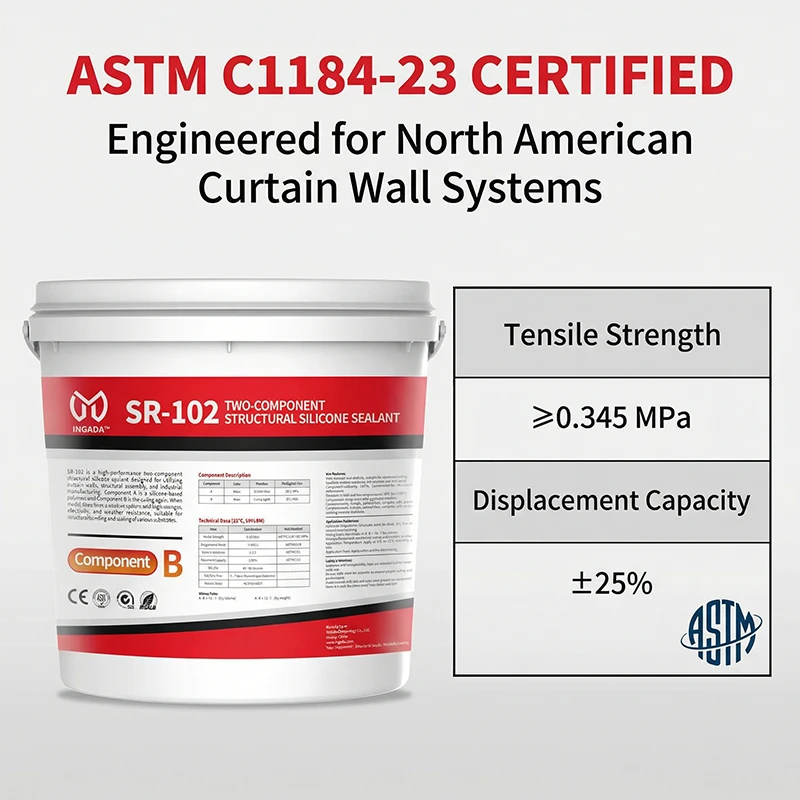

Structural Elite Strength: Delivers a tensile strength of ≥2.0 MPa, meeting ETAG 002 and ASTM C1184 structural safety requirements.
-
Pure System Integrity: 100% solvent-free and compliant with green building standards for sustainable, LEED-oriented projects.
Technical Comparison
| Feature | SR-102 Specification | Standard Comparison |
| Mixing Ratio (Vol) |
10 : 1 |
Industry Standard |
| Tensile Strength |
≥ 2.0 MPa |
SR-100 (1.8 MPa) |
| Movement Capacity |
± 25% |
One-Component (± 20%) |
| Full Cure Time |
3 – 7 Days |
One-Component (7 – 14 Days) |
| Hardness |
Shore A 45 ± 5 |
Standard Structural |
Q:What is the primary advantage of using the two-component SR-102?
A：SR-102 offers controlled, deep-section curing that is independent of atmospheric moisture, allowing for faster handling of structural glass units.
Q:What is the required mixing ratio for SR-102?

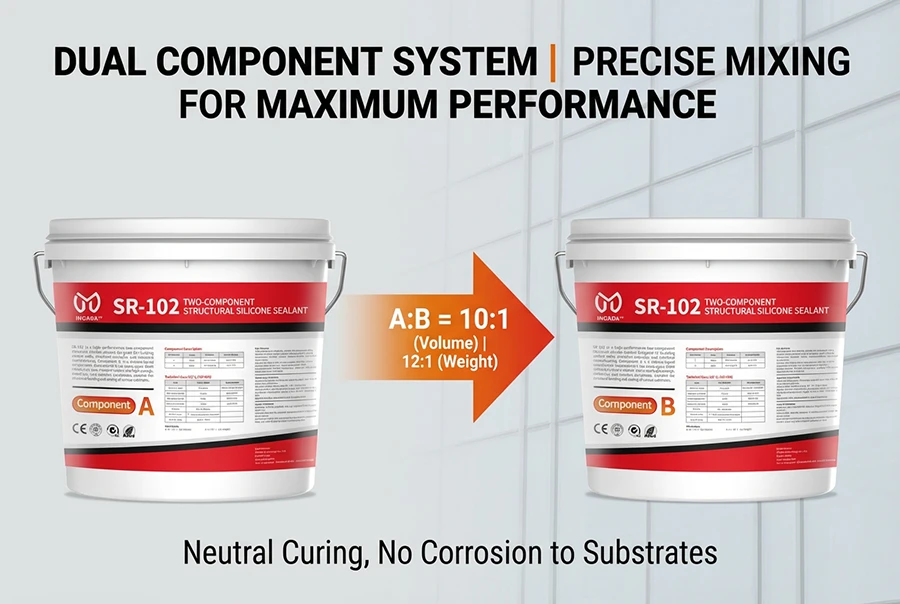

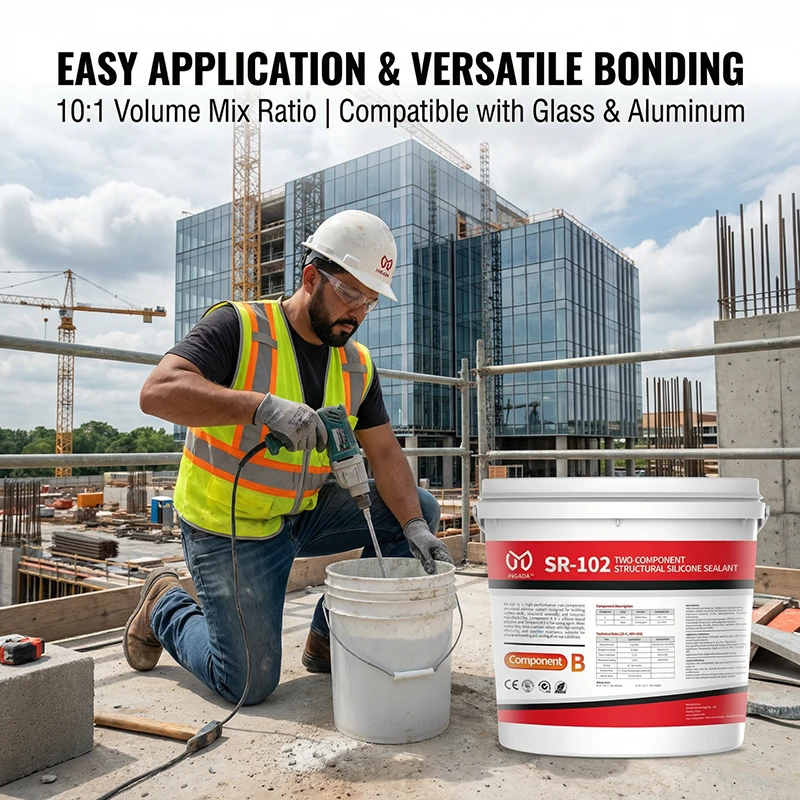

A：The strictly required ratio is 10:1 by volume (or 12:1 by weight), and it must be mixed mechanically until the color is uniform.
Q:How long is the "working window" after mixing?
A：The pot life is 30–60 minutes, providing a sufficient window for professional application before the material begins to set.
Q:Does SR-102 meet European structural standards?

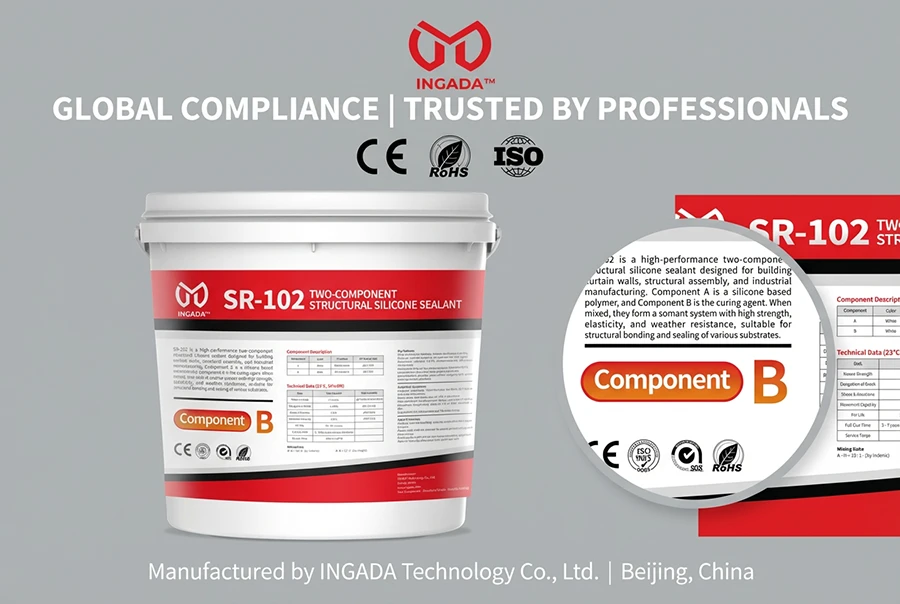

A：Yes, it complies with ETAG 002 (European Structural Sealant Guideline) as well as CE, RoHS, and REACH.
Q:What is the tensile strength of the cured sealant?
A：It delivers high-performance structural bonding with a tensile strength of ≥ 2.0 MPa (per ASTM C1135).
ASTM C1184 | ETAG 002 European Guide | GB 16776 | ISO 11600 | CE | RoHS | REACH
