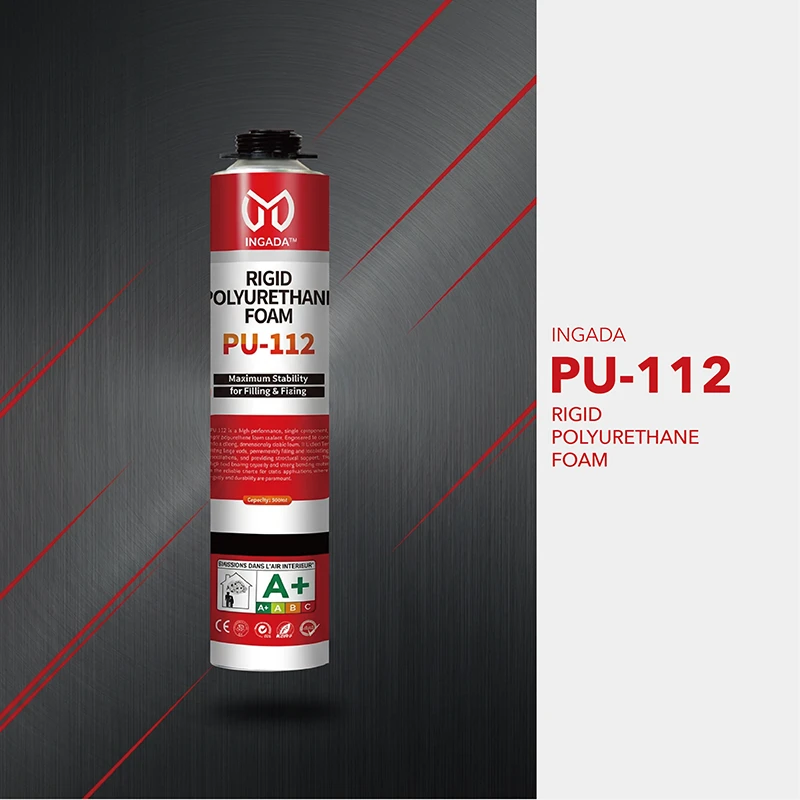

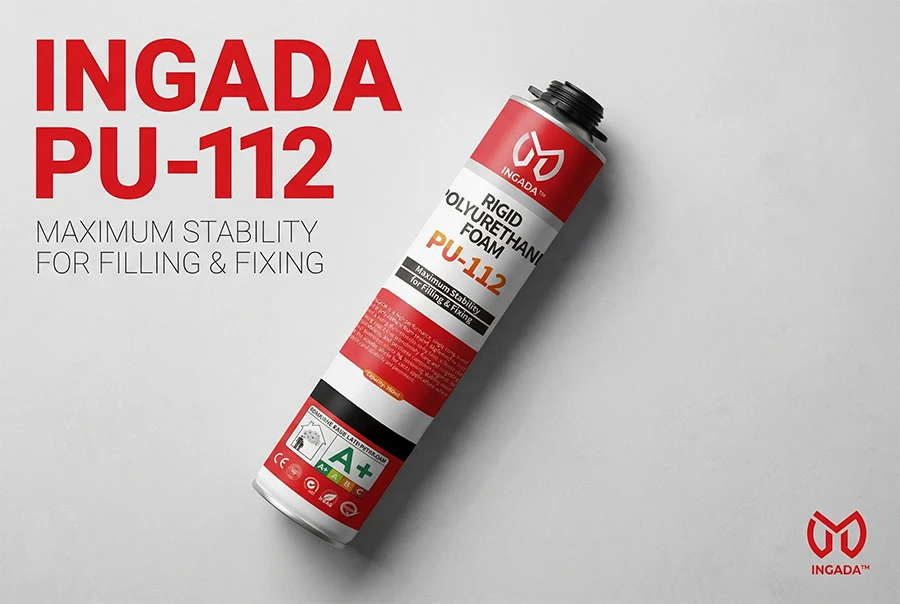

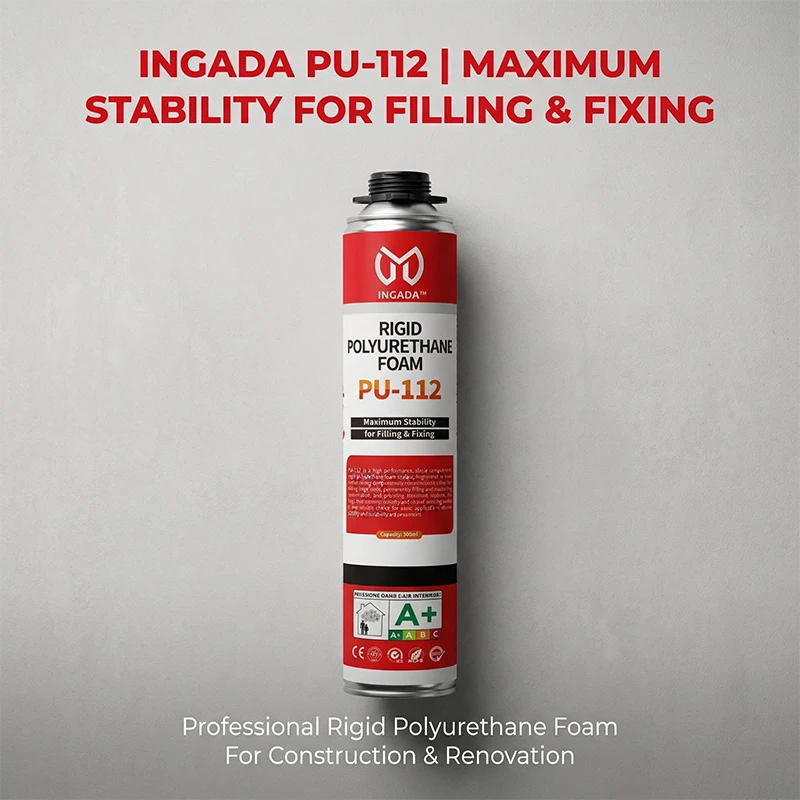

INGADA™ PU-112 Rigid Polyurethane Foam – Structural Insulation Grade
Maximum Stability for Heavy-Duty Filling & Industrial Fixing
-
The Pain: Standard foams that shrink, crack, or fail to support the weight of door frames and heavy fixtures over time.
-
The Solution: INGADA PU-112 transforms from a liquid into a “solid-state” structural support. It doesn’t just fill gaps; it reinforces the entire installation with permanent dimensional stability.
Discover more from INGADA The Ultimate Bonding Expert
Subscribe to get the latest posts sent to your email.
-

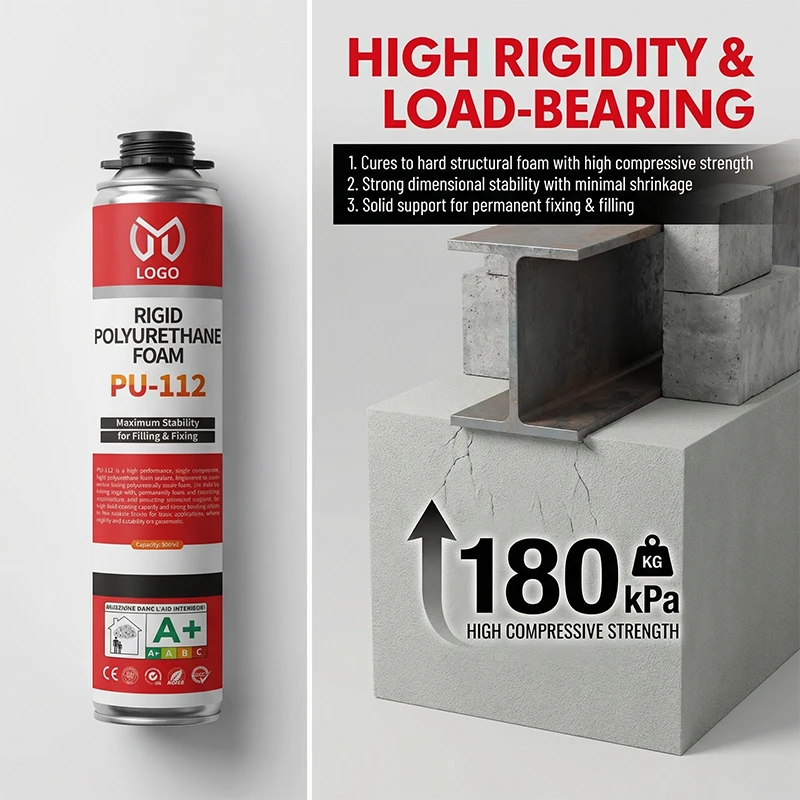

High-Density Load Bearing: Cures into a rigid, structural foam designed to support heavy installations and provide static stability.
-
Precision Low-Pressure Expansion: Engineered to fill deep voids without exerting excessive pressure that could distort delicate window or door frames.
-
Superior Thermal & Acoustic Barrier: Features a >90% closed-cell structure for industry-leading insulation and sound dampening.
-
B2 Fire Safety Rated: Complies with DIN 4102 standards, making it suitable for commercial construction and electrical installations.
-
Extreme Weather Resistance: Operates reliably in temperature extremes from -40°C up to +100°C once fully cured.
Technical Performance Comparison
| Feature | Technical Specification | Benefit for B2B Buyers |
| Expansion Volume |
~40 Liters (750ml can) |
High yield reduces cost per unit. |
| Curing Speed |
8-12 min (Tack-free) |
Minimizes downtime on job sites. |
| Fire Rating |
B2 Grade (DIN 4102) |
Meets essential safety building codes. |
| Cell Structure |
>90% Closed Cell |
Superior moisture and thermal resistance. |
| Full Cure |
24 Hours |
Ready for sanding or painting next day. |
Q：Is PU-112 intended for flexible or static applications?
A:PU-112 is a rigid foam designed for static applications where structural support, high load-bearing capacity, and dimensional stability are required.
Q：What is the fire safety rating for PU-112?
A:It has a B2 fire rating according to the DIN 4102 standard.
Q：How much foam volume can I expect from a single 750ml can?
A:A standard 750ml can provides an expansion volume of approximately 40 liters.
Q：Can PU-112 be used for heavy installations?

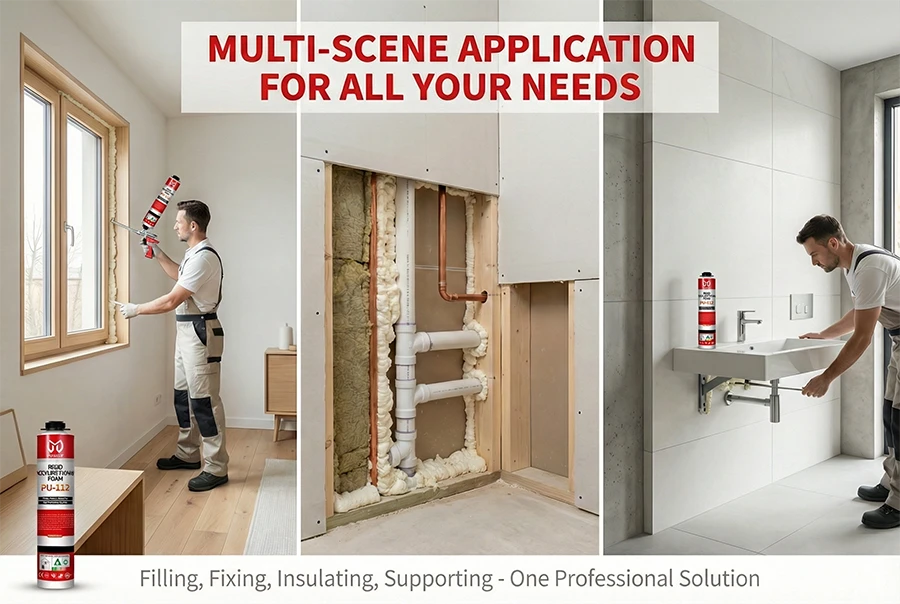

A:Yes, its high compressive strength makes it ideal for permanently fixing door/window frames, installing bathroom fixtures, and supporting wall panels.
Q:How should deep cavities be filled with PU-112?
A:For deep voids, the foam should be applied in layers (maximum 5cm per layer), allowing each layer to expand and set before applying the next.
DIN 4102 B2 Fire Rating | Professional Grade Industrial Standard
