National Stadium 2022 Winter Olympics

1. Project Overview

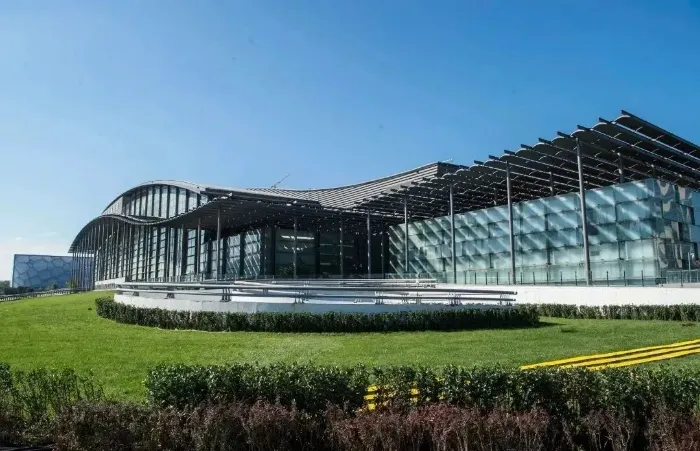

ingada national indoor stadium beijing olympic venue project 1

Item	Details
项目名称 Project Name	National Stadium Renovation & Expansion — 2022 Winter Olympics Ice Hockey Venue (“冰之帆”)
应用领域 Application Field	Sports Venue / Flooring Bonding · Curtain Wall Sealing · Wet-Area Sealing
应用产品 Products Used	MS-77P · SR-50L · MS-650 · MS-50P
项目地点 Project Location	Beijing Olympic Center, Chaoyang District, China

INGADA’s Role: Supplied a 4-product MS Polymer & weatherproof system covering acoustic flooring bonding (MS-77P), “ice brick” glass curtain wall sealing (SR-50L), extreme-temperature movement joints (MS-650), and wet-area anti-mold protection (MS-50P), meeting Green Building 2-Star standards for the 18,000-seat venue.

2. Engineering Challenge

2.1 Flooring Acoustics & Indoor Air Quality

Multi-purpose flooring in a high-occupancy arena required impact-sound reduction with zero plasticizers and zero formaldehyde to meet Green Building 2-Star indoor air requirements.

2.2 Glass Curtain Wall Movement & Zero-Stain Sealing

The 11,000 m² double-layer glass curtain wall — including 2,245 m² of embossed “ice brick” glass — had to accommodate ±50% panel movement while remaining stain-free on decorative glass under sustained UV exposure, from Beijing’s winter lows to summer solar gain.

2.3 Extreme-Temperature Joints & High-Humidity Wet Areas

Structural joints faced sub-zero ice-rink conditions and seasonal temperature swings requiring low-temperature flexibility down to -40°C; athlete shower and bathroom zones demanded long-term mold prevention under constant steam and moisture.

3. INGADA Solution

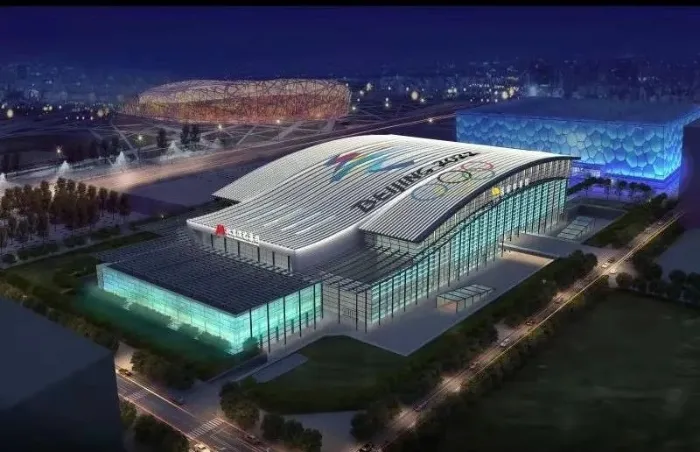

National Indoor Stadium (Ice Hockey Venue for the 2022 Winter Olympics) 3

Functional Zone	Challenge	INGADA Product	Key Advantage
Multipurpose Flooring	Acoustic isolation + zero-VOC	MS-77P	100% pure resin, ΔLw ≥16 dB acoustic reduction
Glass Curtain Wall & Façade	±50% movement + zero-stain	SR-50L	Class 50 movement, ultra-low modulus, -50°C~150°C
Extreme-Temperature Joints	Sub-zero flexibility + dynamic loads	MS-650	±50% movement, ≥780% elongation, -40°C flexibility
Shower / Bathroom Wet Areas	Extreme humidity mold prevention	MS-50P	12× V0 anti-mold, moisture-cure technology

4. Results & Outcomes

Outcome	Evidence / Metric
Environmental Compliance	Green Building 2-Star met; French A+ · REACH · RoHS; zero plasticizers in MS-77P
Façade Integrity	SR-50L Class 50 sealed “ice brick” glass with zero staining, -50°C~150°C
Extreme-Temperature Reliability	MS-650 absorbed sub-zero to summer thermal cycling without embrittlement
Acoustic Performance	ΔLw ≥16 dB impact sound reduction across 18,000-seat arena
Mold Prevention	12× V0 anti-mold in all athlete wet areas

5. Project Data

供货量 Supply Volume	11.5吨 (tons)
应用面积 Application Area	31000平米(m²)
性能保障周期 Performance Warranty	1 月2028年 (months / years)
施工工时缩短 Construction Time Saved	20%
